Collaborative Robotic Palletizers
Start with your carton dimensions, sealing requirements, and production goals. Discuss a cobot palletizing system configuration for your packing speed and workflow with Lantu.
- Define product payload shapes (cartons, bags, drums), single-pick weight, stack height, and throughput requirements.
- Match collaborative robot arms with customized suction tools, pneumatic grippers, and elevator pillar mechanisms to your floor space constraints.
- Review collision-detection safety features, hand-guided teaching/graphical UI, dual-pallet swapping, and upstream casing line integration requirements.
Tell us what you pack. We’ll help you discuss a suitable equipment configuration.
EQUIPMENT OVERVIEW
Product details & configuration
Say Goodbye to Large Footprints, Mandatory Safety Fences, Complex Teach Pendant Programming, and Difficult Line Relocation: Experience Safe Human-Robot Coexistence, Flexible & Rapid Deployment Intelligent Palletizing

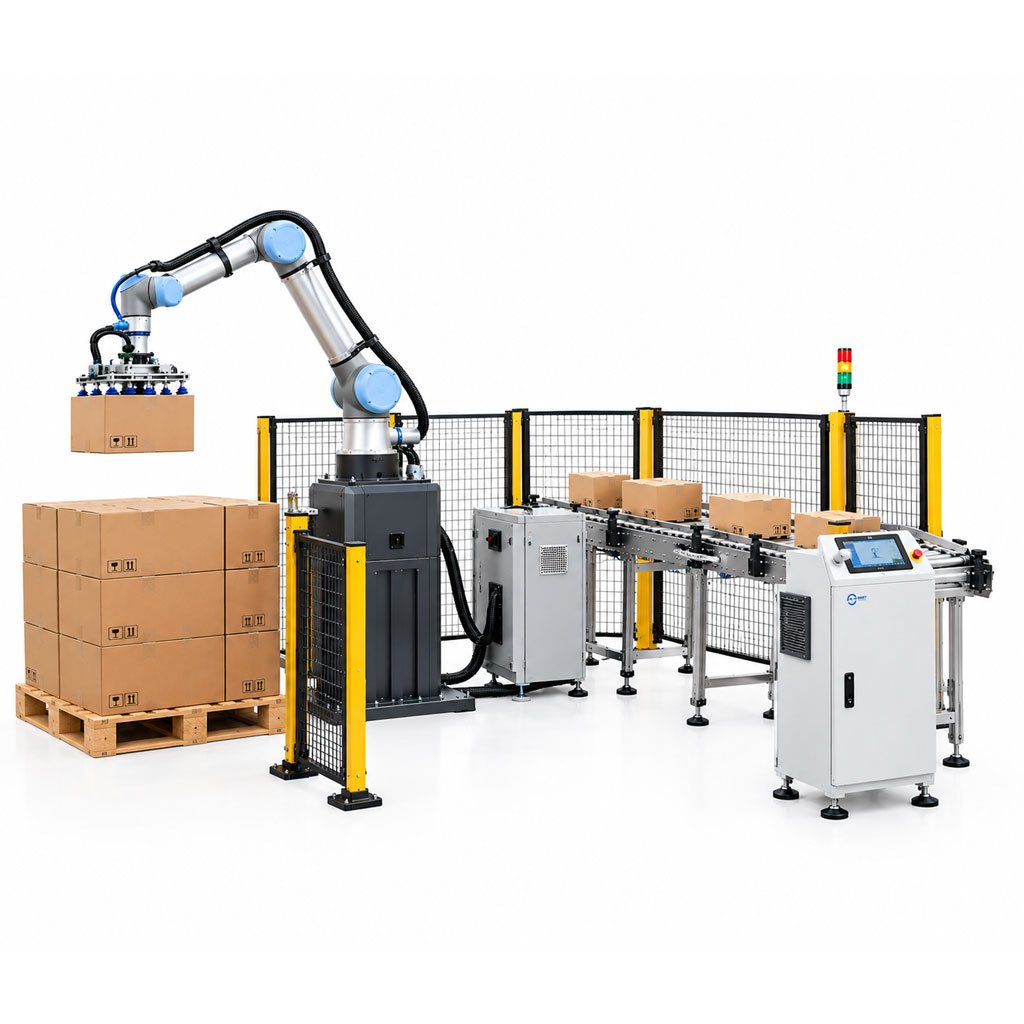

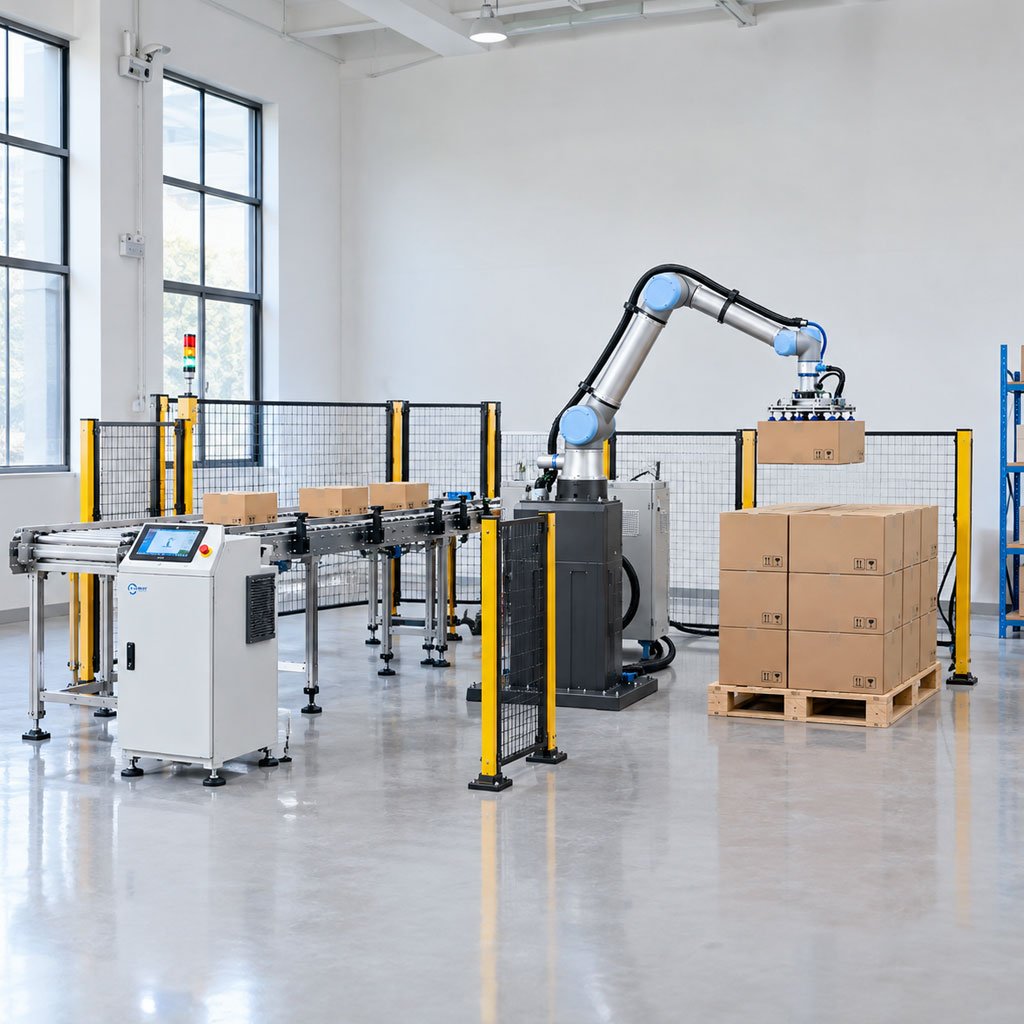

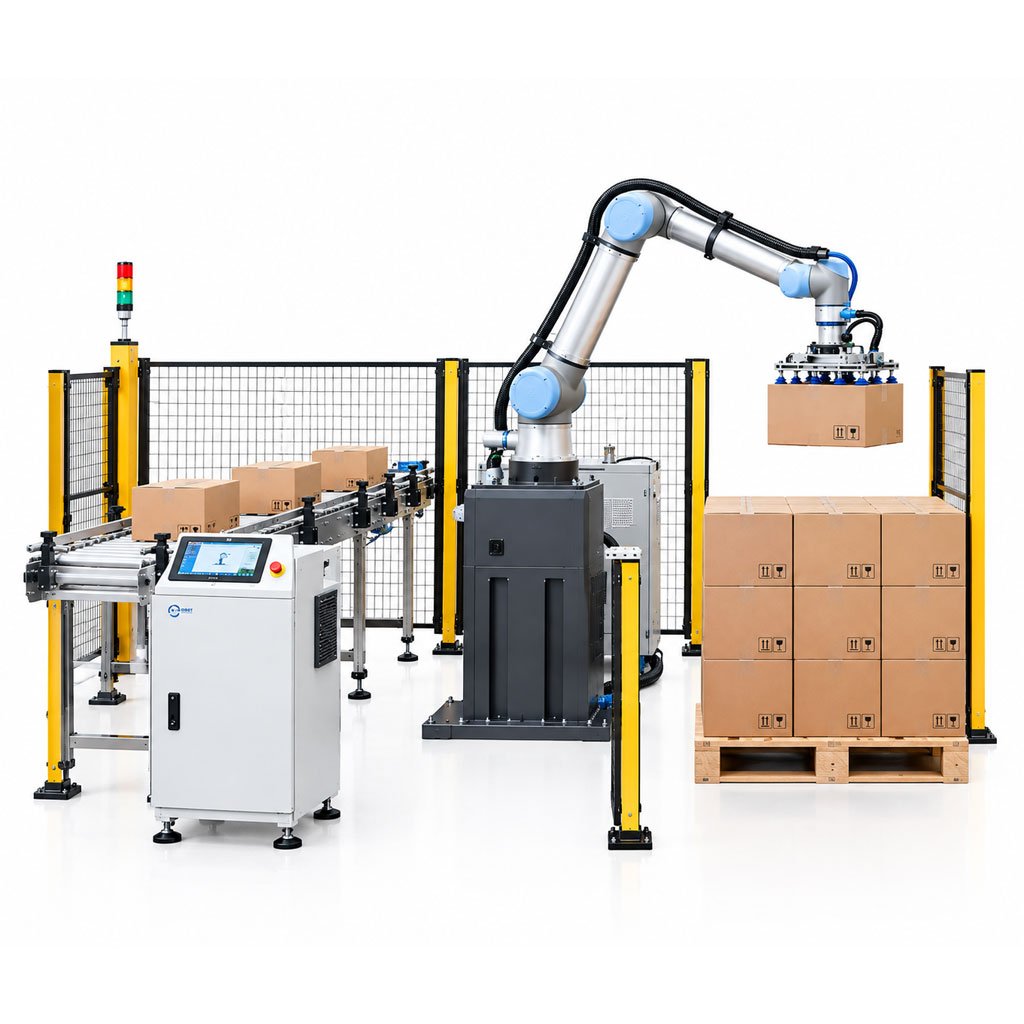

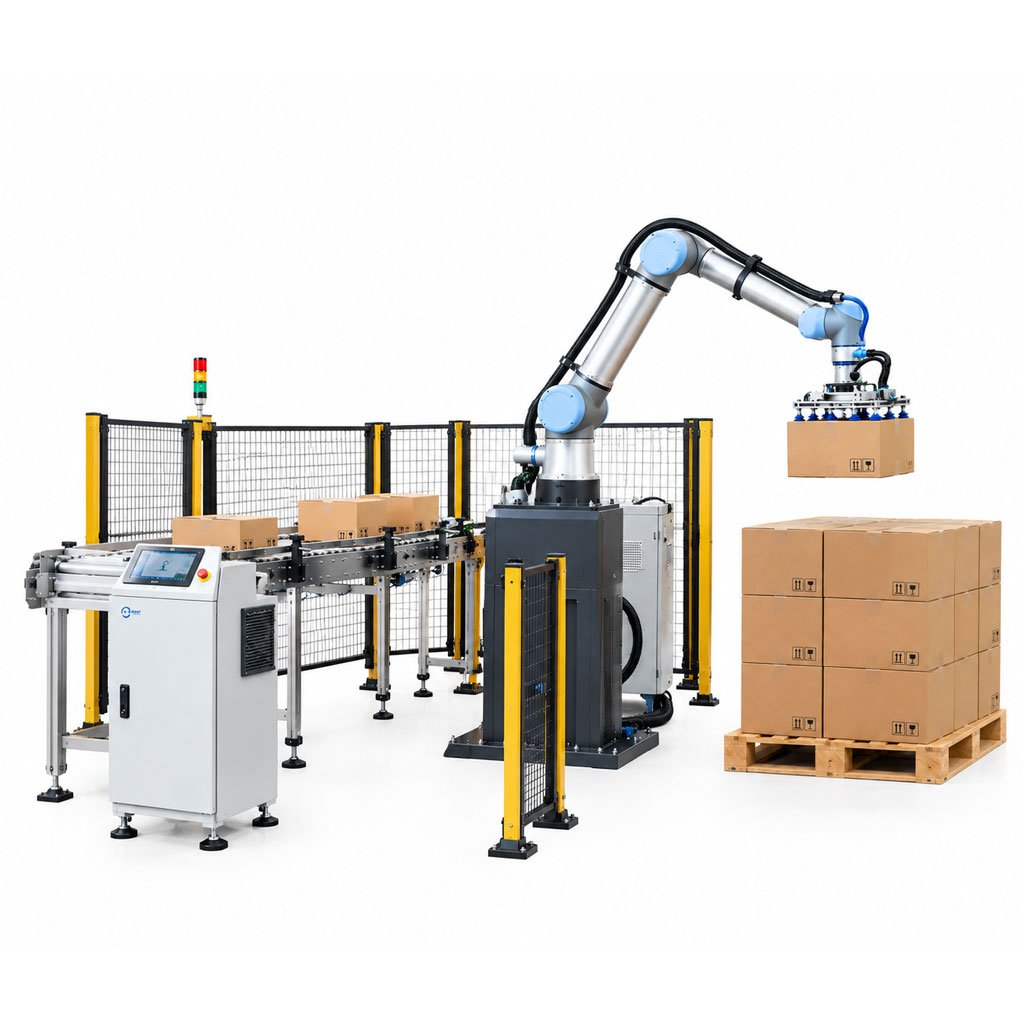

The Collaborative Robot Palletizing System (Cobot Palletizer) (integrating high-payload cobot arm $\rightarrow$ safety sensing & collision detection system $\rightarrow$ modular flexible end-of-arm tooling (EOAT) $\rightarrow$ intelligent no-code palletizing algorithm software $\rightarrow$ pallet/box positioning sensors $\rightarrow$ high-precision flexible palletizing output) is an industrial-grade flexible automation assistant engineered to solve end-of-line packaging pain points such as palletizing labor shortages, extreme physical fatigue, massive footprints and mandatory safety enclosures of traditional industrial palletizers, frequent line changeovers for high-mix low-volume production, and tight workshop space constraints.
LANTU Machinery introduces an integrated fully automatic cobot palletizing solution. Equipped with a lightweight high-payload cobot arm, supported by vision/photoelectric precision positioning and no-code graphical palletizing software, it performs millisecond-level collision sensing in open workspaces—enabling safe human-robot collaboration without rigid safety fences. Whether handling cartons, bagged materials, liquid drums, plastic crates, or boards, it delivers high sensitivity, optimal space utilization, and diverse pattern stacking (such as interlocking, pinwheel, or column stacks).
As a source packaging and palletizing machinery manufacturer, LANTU Machinery has designed this system—covering inverse kinematics, collision torque monitoring, trajectory smoothing, and pattern generation—to be as intuitive as a smartphone app. Operators simply drag to teach or select box and pallet dimensions via a 3D graphical user interface, and the system automatically calculates optimal stacking trajectories. Occupying a minimal footprint of only 1.5–2.0 square meters, offering one-touch forklift relocation, and providing plug-and-play capability, it helps factories save space, labor, time, and hassle.
Choosing a reputable source manufacturer is crucial for your end-of-line automation upgrade. LANTU Machinery’s mature cobot palletizing algorithms and modular hardware engineering ensure your packaging line achieves high-efficiency closed-loop operation, rapid commissioning, and long-term stability.

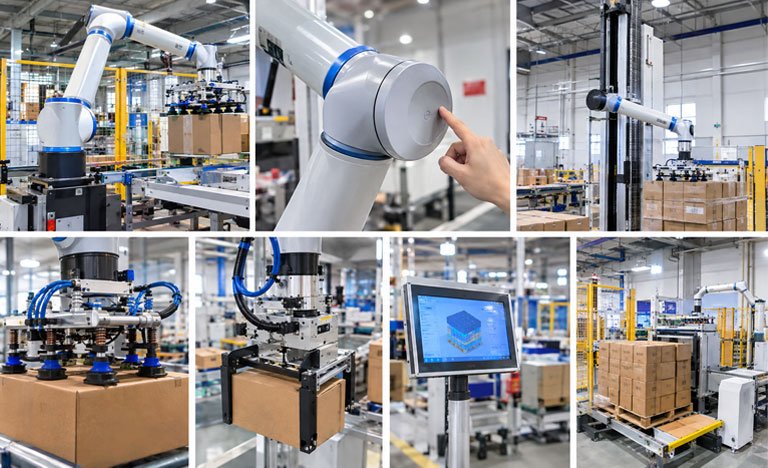

Core Components and Three System Safeguards (LANTU Precision Parts)
Our collaborative robot palletizing systems are fully equipped with industry-leading core components, ensuring operational safety, high accuracy, and an ultra-long service life.
1. Cobot Arm Body & Safety Collision Safeguards
High-Payload / Long-Reach Cobot Arms: Available in 10kg / 12kg / 16kg / 20kg / 25kg / 30kg payload specifications with working radii ranging from 1300mm to 1900mm, fully meeting standard pallet dimensions (e.g., 1200×1000mm, 1100×1100mm) and high-stack requirements (stacking heights up to 1.8m–2.2m with elevation columns).
High-Sensitivity Joint Torque Sensors: Features 10-level safety collision detection that automatically brakes and stops within milliseconds upon contacting humans or obstacles, eliminating the need for physical safety fences while satisfying safety compliance standards.
Expandable Servo Elevation Column (Z-Axis): Optional servo-controlled synchronous elevation column dynamically adjusts the cobot base height during stacking, extending native arm reach to easily handle tall stacks over 2.2 meters.
2. Modular Multi-Function End-of-Arm Tooling (EOAT)
Flexible Vacuum Grippers: Ideal for standard cartons, display boxes, and flat boards, utilizing foam pads or multi-suction cup arrays to securely grip irregular or porous carton surfaces for single or multi-box pick-and-place.
Mechanical Pneumatic Clamps: Designed for open-top boxes, plastic crates, or heavy containers, utilizing side-clamping or bottom-support mechanisms to ensure secure handling without box damage.
Bag Grippers (Pneumatic / Electric): Tailored for granular or powder bags, utilizing bottom-supporting claws or pin-plates to manage flexible bag deformation during stacking.
3. Intelligent Palletizing Software & Guidance System
No-Code 3D Graphical Interface: Integrated 7-inch / 10-inch industrial touchscreen or mobile tablet terminal with an interactive 3D stack designer. Users input box dimensions (L×W×H), pallet size, and layer count, and the software generates optimal trajectories and stacking patterns within 1 minute.
Dual-Pallet Alternate Stacking: Supports Station A / Station B dual-pallet layouts. When Pallet A reaches full capacity, the cobot seamlessly switches to Pallet B without stopping production, allowing operators to safely clear Pallet A for uninterrupted continuous operation.
Automatic Sheet Placement (Optional): Optional side-mounted slip-sheet grippers automatically retrieve and place cardboard interleavers between specified layers to enhance stack stability.
Technical Specifications
| Technical Parameter | LT-CP-120 (Standard Light-Duty Cobot Palletizer) | LT-CP-250 (Heavy-Duty / Dual-Pallet Cobot System) |
| Payload Capacity | $12\text{ kg}$ (Including EOAT gripper weight) | $20 – 30\text{ kg}$ (Including EOAT gripper weight) |
| Reach Radius | $1300 – 1400\text{ mm}$ | $1700 – 1900\text{ mm}$ |
| Palletizing Speed | 6 – 12 boxes/min (Single pick) / Up to 18 (Multi-pick) | 6 – 10 boxes/min (Heavy/Bag) / Up to 16 (Multi-pick) |
| Max. Stacking Height | 1.8 m (Direct) / 2.2 m (With Z-axis lifting column) | 2.0 m (Direct) / 2.4 m (With Heavy Z-axis column) |
| Applicable Pallets | $1200 \times 1000\text{ mm}$ / $1100 \times 1100\text{ mm}$ (Customizable) | $1200 \times 1000\text{ mm}$ / $1200 \times 1200\text{ mm}$ (Dual-station) |
| Repeatability | $\pm 0.05\text{ mm}$ | $\pm 0.05\text{ mm} – \pm 0.1\text{ mm}$ |
| End Effector (EOAT) | Flexible Vacuum Sponge Gripper / Suction Cup Array | Side-Clamping Gripper / Bottom-Support Bag Gripper |
| Footprint Area | Approx. $1.5\text{ m}^2$ (Compact mobile base, forklift-ready) | Approx. $2.5 – 3.2\text{ m}^2$ (Dual-station continuous mode) |
| Power & Air Supply | AC 220V / 50Hz / 1.5 kW; Air: 0.5–0.7 MPa | AC 380V or 220V / 50Hz / 3.0 kW; Air: 0.6–0.8 MPa |
Note: Actual palletizing speed and payload capacity depend on gripper weight, package surface (carton/bag/crate), and motion trajectory. Free 3D simulation, custom EOAT designs, and full line integration are available upon request.

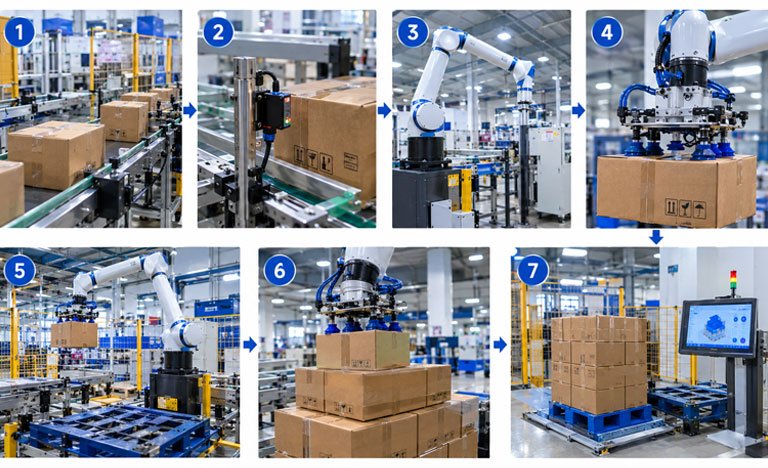

Workflow Breakdown
[Sealed cartons or bagged materials arrive via feed conveyor]
↓
[Positioning sensor detects incoming material and locks coordinates]
↓
[Cobot receives pick command; Z-axis and joints move into position]
↓
[EOAT gripper/vacuum head securely picks material (single or multi-pick)]
↓
[System moves smoothly along 3D planned trajectory to pallet location]
↓
[Material is placed gently and tightly according to target stack pattern]
↓
[Full pallet triggers auto-alert or seamless shift to secondary station]
Application & Specification Selection Guide
To assist in model selection, LANTU Machinery cobot palletizing systems are widely applicable across various industries and material types:
| Material Type | Gripping Mechanism | Common Payload / Reach | Typical Industries |
| Standard Cartons / Boxes | Top Vacuum Gripper / Side Clamp | 12kg – 20kg (1300–1700mm reach) | Food & beverage, pharmaceuticals, daily chemicals, electronics |
| Shrink-Wrapped Packs | Bottom Support + Top Clamp | 16kg – 30kg (with elevation axis) | Bottled water, canned drinks, breweries, condiments |
| Flexible Bags (Powder/Granule) | Bottom-Support Claws / Pin Gripper | 20kg – 30kg (1700–1900mm reach) | Grains, chemical raw materials, construction, pet food |
| Plastic Crates / Tote Boxes | Hook-Type / Pneumatic Clamp | 15kg – 25kg (1400–1800mm reach) | Fresh produce, auto parts, logistics sorting |
3 Reasons to Choose LANTU Machinery Cobot Palletizers
When investing in automated palletizing equipment, footprint size, human safety, and reconfiguration flexibility are key metrics. LANTU Machinery is committed to delivering machines that offer plug-and-play operation, rapid deployment, and easy line relocation.
Ultra-Compact Footprint & Seamless Integration: Requires no bulky safety fences and occupies a footprint similar to a standard pallet. Fits directly into tight aisles or existing conveyor ends, reducing facility modification costs by 90%.
Mobile Base for 15-Minute Line Relocation: Built on an integrated mobile base, the entire system can be relocated using a standard pallet jack, plugged into a standard power outlet and air line, and immediately redeployed for high-mix, low-volume production.
Comprehensive Pre-Shipment Simulation & Live Testing: Every system undergoes full-load continuous motion and stack stability testing using customer-specific box samples and pallet layouts prior to shipment.

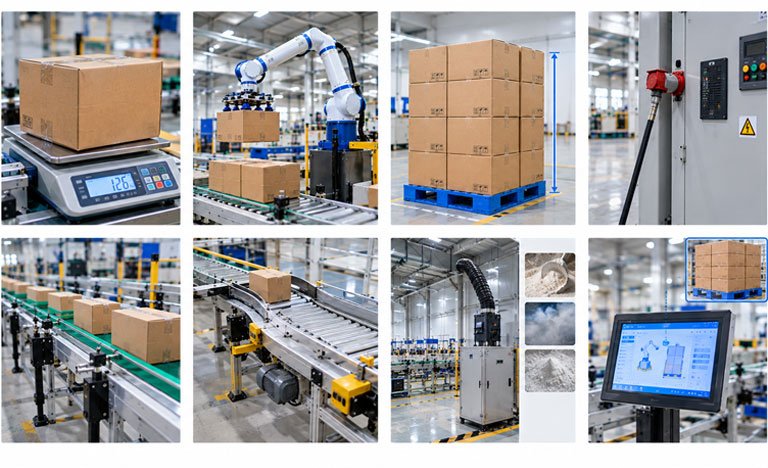

What Factors Should You Consider When Purchasing?
Single Package Weight & Speed Target: What is the weight of a single box/bag (kg)? What is the required speed in boxes/bags per minute? (Standard cobot palletizing speeds range between 6 and 13 cycles/min; for ultra-high speeds exceeding 15 cycles/min, traditional industrial robots may be considered).
Pallet Dimensions & Stacking Height: What are your standard pallet dimensions (e.g., 1200×1000mm)? What is the maximum target stack height? (Determines whether a Z-axis servo elevation column is required).
Workshop Environment & Power Supply: Are there explosion-proof or dust-proof requirements (e.g., powder industries)? Is the site power supply single-phase 220V or three-phase 380V?
Infeed Conveyor Interfacing: Is the incoming product flow continuous or intermittent? Are infeed indexing mechanisms or lane dividers needed?
Frequently Asked Questions (FAQ)
Q1: Does a cobot palletizer truly operate safely without a fence? What if it hits an operator?
Answer: Yes, it is designed for fence-free operation. Cobots incorporate advanced joint force sensors and electronic safety stop systems. If the joint detects an external force exceeding preset thresholds (such as contacting a person), the system stops within milliseconds without causing injury. For high-traffic areas, optional Safety LiDAR sensors can be added to slow down the robot when people approach and automatically resume full speed when the area is clear.
Q2: How complicated is it to reconfigure patterns when switching carton sizes?
Answer: Extremely simple. LANTU Machinery systems feature intuitive 3D graphical palletizing software. When switching carton sizes, operators simply enter the new box dimensions (L×W×H) and weight on the touchscreen. The software automatically calculates optimized stacking trajectories and layer patterns, completing changeover in under 3 minutes without writing code.
Q3: What is the stacking speed of a cobot palletizer compared to traditional industrial robots?
Answer: Cobots prioritize safety, compactness, and flexibility with moderate speeds. Paired with high-efficiency grippers, cobot palletizers operate at 6 to 13 cycles per minute (speeds can double when picking multiple boxes per cycle). Traditional industrial robots offer higher speeds (15–25 cycles/min) but require large footprints and rigid safety enclosures. For the majority of small-to-medium packaging lines, cobot palletizers provide an exceptionally high return on investment.
Contact the source manufacturer today to receive a custom cobot palletizing solution and 3D layout design!
LANTU Machinery — Dedicated to Packaging and Palletizing Equipment Manufacturing with Factory-Direct Quality Assurance.
