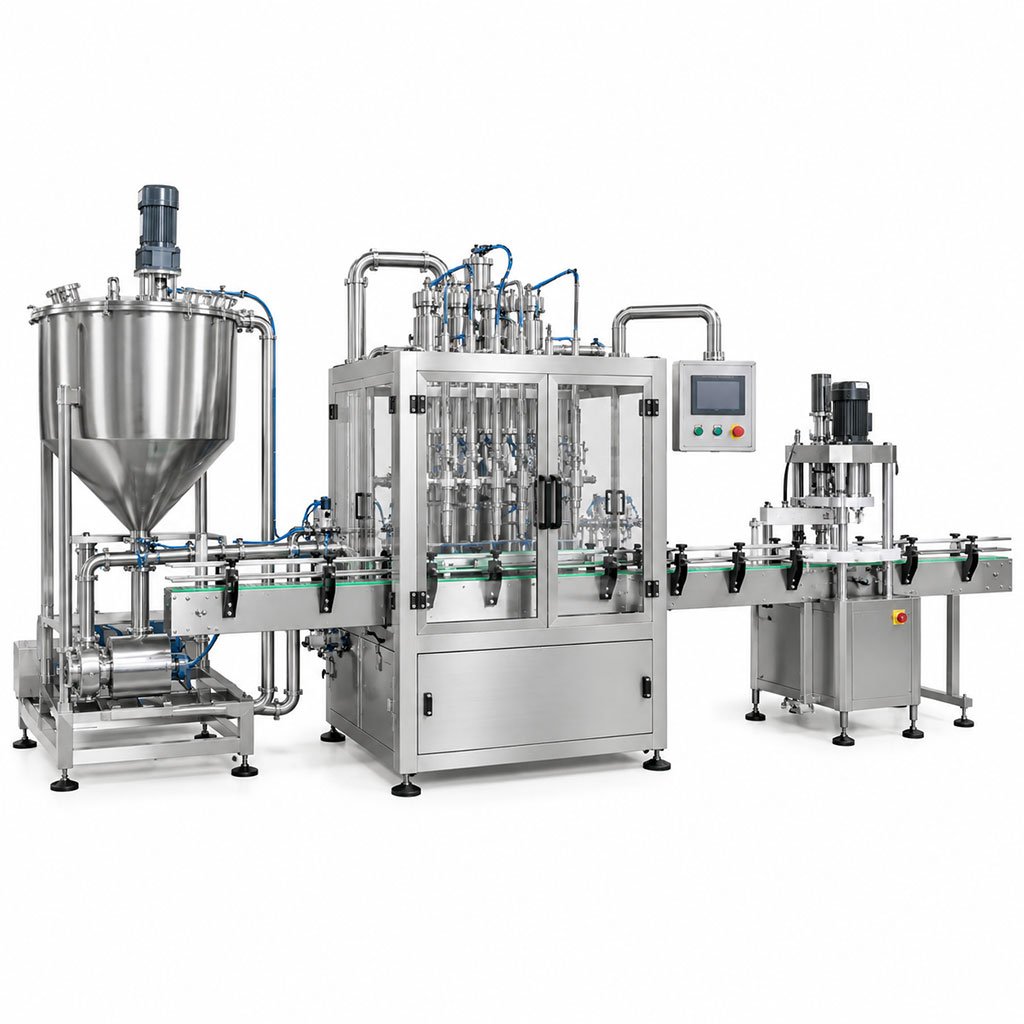

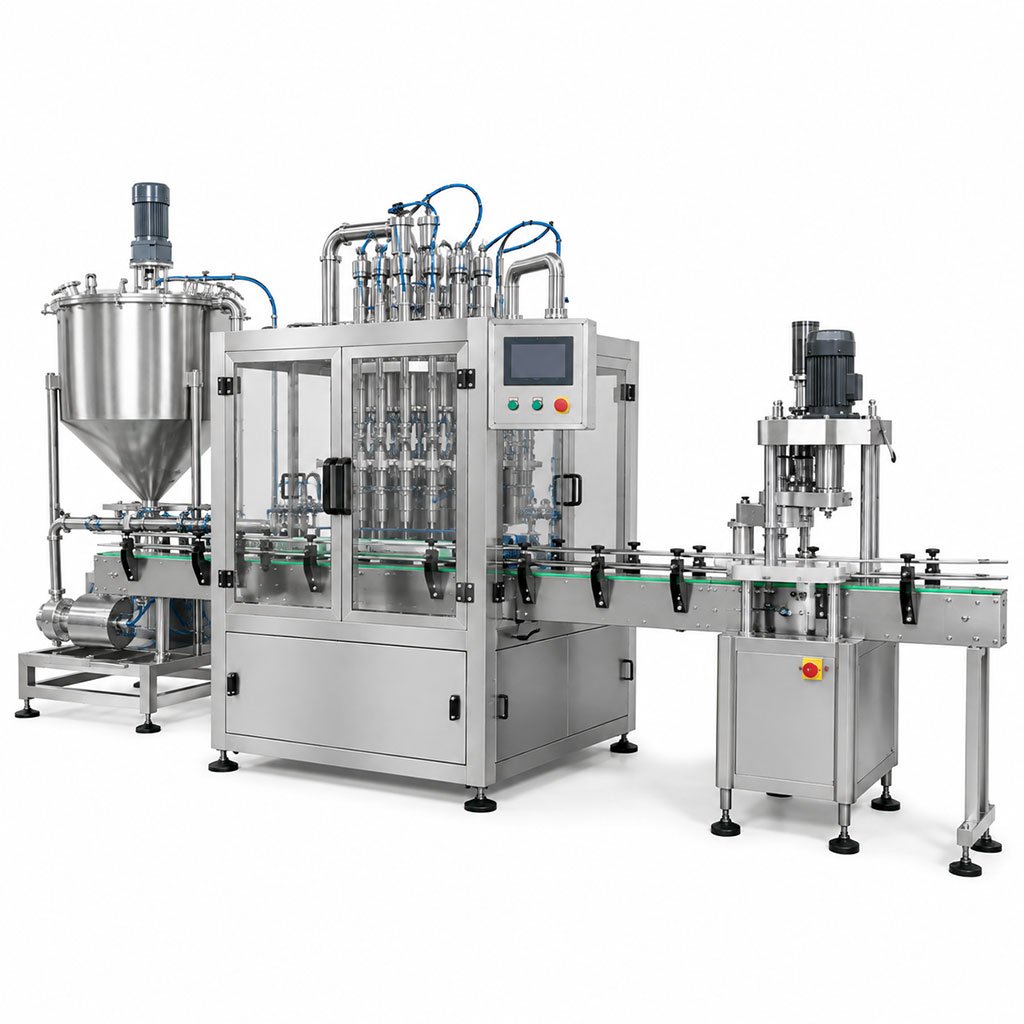

LANTU Mechanical High-Efficiency Sauce and High-Viscosity Jam Filling Line: The Ultimate Automated Production Experience

A sauce and high-viscosity jam filling line is, simply put, a factory packaging powerhouse specially designed to tackle materials that are “viscous, particulate-laden, and difficult to pour or fill.” It features a U-shaped horizontal mixing hopper combined with powerful cylinders driven by industrial air pressure—acting much like several high-power precision extraction pumps working simultaneously. Whether handling fruit jams with fruit pulp particles, viscous chili paste, peanut butter, bean paste, or various high-viscosity seasoning sauces, it keeps the material uniform and free of sedimentation through powerful agitation. It then automatically and rapidly fills them into bottles, jars, or bags according to preset volumes (such as a precise 500g or 1000g), ensuring clean material cutoff and zero dripping.

As a direct source packaging machine manufacturer, LANTU Mechanical has designed this complex sauce-packaging workflow to be as simple to use as a smartphone, completely bidding farewell to the old days of manual sauce filling, which suffered from low efficiency, inaccurate metering, messy bottle mouths, and uneven particle distribution. Operators only need to press a few buttons on the intelligent touch screen to easily adjust the filling volume, mixing speed, and dispensing rhythm. The machine supports customizable head options—once the automated assembly line starts, mixing, metering, feeding, and filling are completed in one seamless motion. This drastically shortens the packaging process, helping food factories save labor, time, and money.

Choosing a reputable source manufacturer is crucial for your equipment return on investment (ROI). LANTU Mechanical’s mature high-viscosity filling technology, combined with high reliability and industry-leading filling accuracy, ensures your sauce production line runs smoothly with zero downtime.

LANTU Mechanical Precision Components: Powering High-Efficiency and High-Precision Filling

Our sauce and high-viscosity jam filling line is fully equipped with industry-cutting-edge core components, ensuring top product quality, flawlessness, and ultra-long service life right from the source.

1. Power and Pneumatic Control System

Top-Tier Pneumatic Actuators: Utilizes SMC or AirTAC pneumatic control systems, delivering rapid response and ensuring millions of fault-free operation cycles.

High-Precision Large-Channel Cylinders: Features 316L stainless steel precision-ground cylinders, keeping measurement error within $\pm$0.5%. Specially designed for high-viscosity and large-particle materials, offering strong propulsion without jamming.

High-Precision Filtration and Pressure Regulation: Equipped with a three-stage air source treatment assembly to effectively filter out moisture and impurities from the air, ensuring stable, fluctuation-free pneumatic circuits.

Corrosion-Resistant Explosion-Proof Air Hoses: Built with imported high-elasticity, corrosion-resistant air tubes that are pressure-resistant and explosion-proof, ensuring continuous, high-intensity operation without air leaks.

2. Filling and Material Conveying System

Anti-Drip and Anti-Stringing Large-Caliber Filling Heads: Equipped with LANTU’s independently developed pressurized cut-off sauce-dedicated valves paired with an anti-drip collection tray, ensuring rapid valve closing and completely eliminating sauce stringing and bottle-mouth contamination.

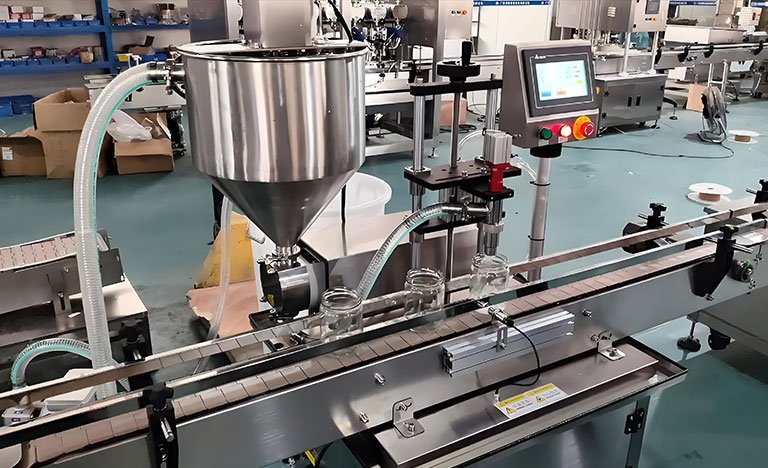

U-Shaped Horizontal Bi-Directional Mixing Hopper: Features a horizontal U-shaped structure with a high-power stepless variable-speed mixing paddle, thoroughly blending fruit particles and sauce liquid to prevent material sedimentation and layering, ensuring a consistent particle-to-sauce ratio in every bottle.

Bi-Directional Anti-Foaming Submersed Filling Design: Filling heads can reach deep into the bottom of the bottle, rising gradually during the filling process to effectively eliminate bubbles and voids generated during high-viscosity sauce filling.

Flexible Head Expansion Design (2-12 Heads): Modular design allows users to freely select or later upgrade the number of filling heads based on production capacity demands, significantly enhancing batch production efficiency.

3. Intelligent Control and Safety Protection System

Siemens/Mitsubishi PLC Control Core: Industrial-grade central processing chips offering stable operation and strong anti-interference capabilities.

High-Sensitivity Photoelectric Sensors: Uses Japanese OMRON photoelectric detection systems to achieve “no bottle, no filling” and “automatic shutdown on bottle jamming.”

304 Thickened Stainless Steel Body: Fully enclosed safety protection cover design that not only complies with GMP and food safety hygiene standards, but also greatly ensures operator safety.

Technical Specifications of Lantu Machinery Sauce and High-Viscosity Jam Filling Machine

5 Reasons to Choose LANTU Mechanical Sauce and High-Viscosity Jam Filling Lines

When investing in automated filling equipment, high precision, low maintenance, and long-term stability are core metrics. LANTU Mechanical is committed to ensuring that every factory-shipped device achieves “plug-and-play” simplicity and long-lasting durability.

Anti-Corrosion and High-Hygiene Treatment: All pipelines, valves, and U-shaped hoppers in contact with materials undergo pickling passivation and food-grade mirror polishing treatments, making them acid/alkali resistant with no sanitary dead zones, fully complying with food safety regulations.

Ultra-Clean Air and Liquid Line Flushing: Prior to assembly, all air tubes and connectors undergo high-pressure clean air purging to ensure no dust or residue enters the system, reducing the risk of valve core wear and clogging.

Full-Process Practical Material Testing Prior to Shipment: Before leaving the factory, all equipment must undergo long-term continuous operation tests across high, medium, and low speeds with real sauces of varying viscosities (containing particulate media), thoroughly eliminating dripping and accuracy deviations before shipment.

Dual Voltage and Air Pressure Stabilization Protection: The machine features a built-in wide-range voltage stabilization module and pneumatic overload protection device, effortlessly handling factory grid fluctuations or unstable air pressure to ensure consistent quantification at all times.

Modular Quick-Disassembly and Cleaning Design: Utilizes Tri-Clamp quick-release connections, allowing tools-free disassembly and cleaning of the U-shaped hopper, filling heads, and pipelines within 10 minutes, drastically shortening product-changeover downtime.

What Factors Should You Consider When Choosing a Sauce and High-Viscosity Jam Filling Line?

To help you select the equipment that best matches your production line, here are several key procurement indicators:

Material Viscosity and Particle Size: Pure sauces (such as sweet bean paste), small-particle sauces (such as fruit jam, minced garlic sauce), and large-particle sauces (such as beef sauce, mushroom sauce) impose different requirements on the U-shaped hopper mixing structure and valve channels. Please inform us of your material characteristics in advance.

Target Capacity (Bottles/Hour): Capacity dictates the number of filling heads. 2-head or 4-head configurations suit small and medium-sized food factories or workshops, while 6, 8, or 12-head setups are ideal for high-capacity automated assembly lines.

Container Shape and Bottle Mouth Size: Wide-mouth glass bottles, plastic jars, stand-up pouches, and other containers have distinct requirements for bottle-clamping positioning and filling head submersing mechanisms, which must be mechanically adapted based on samples beforehand.

Filling Volume Range: Different capacities (e.g., 100-500g or 500-2500g) correspond to different cylinder strokes and pump specifications. Selecting a wide and matching metering range can accommodate multiple product specifications.

Heating and Insulation Needs: If the jam or sauce solidifies easily at room temperature (such as those containing beef tallow or high-pectin jams), a double-layer electric heating and temperature-controlled insulation hopper must be configured.

LANTU Mechanical — Dedicated to packaging equipment manufacturing, backed by source manufacturer quality assurance. Welcome to contact our professional engineering team to get a free system design and exclusive quotation!
