Sauce Bottle-Packing Lines

Say Goodbye to Sticky Dripping and Bottle Contamination: Create an Ultra-Fast, Precise Automated Experience for Sauce Bottling

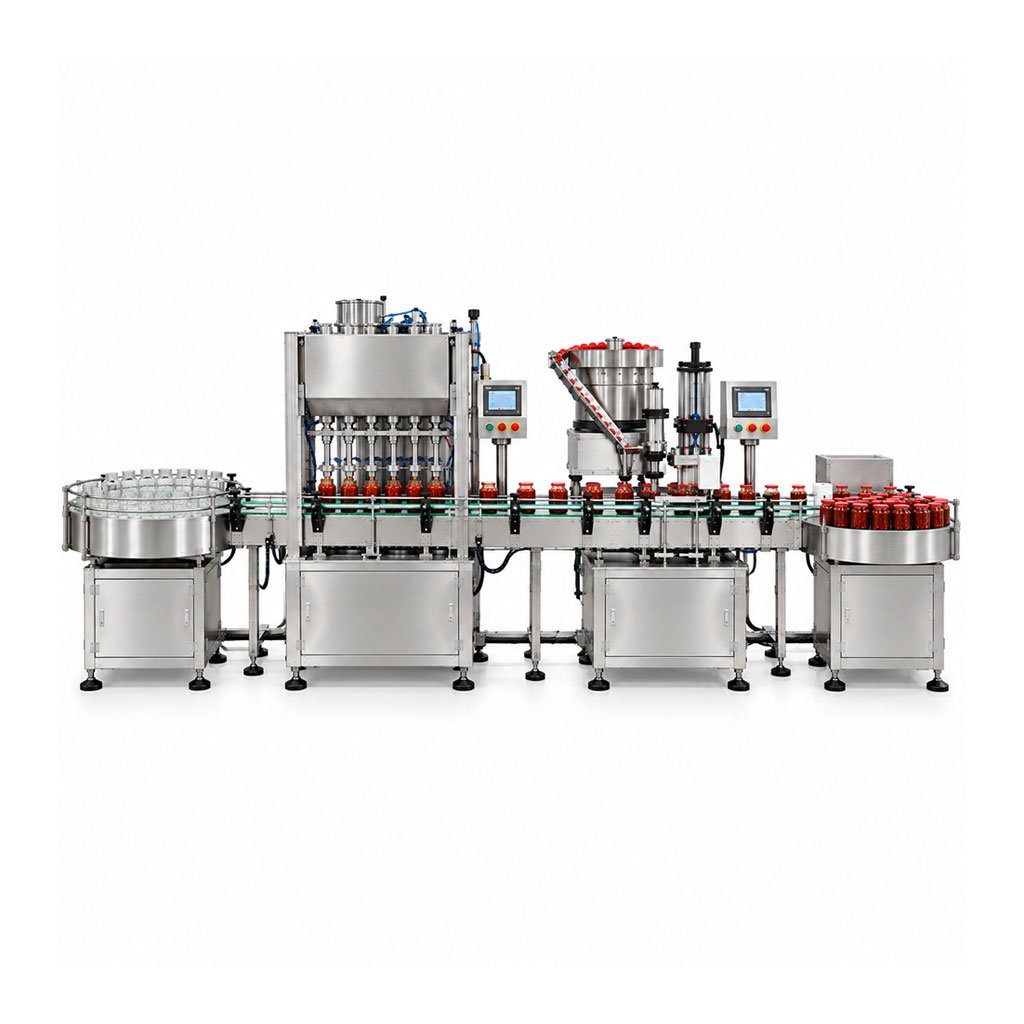

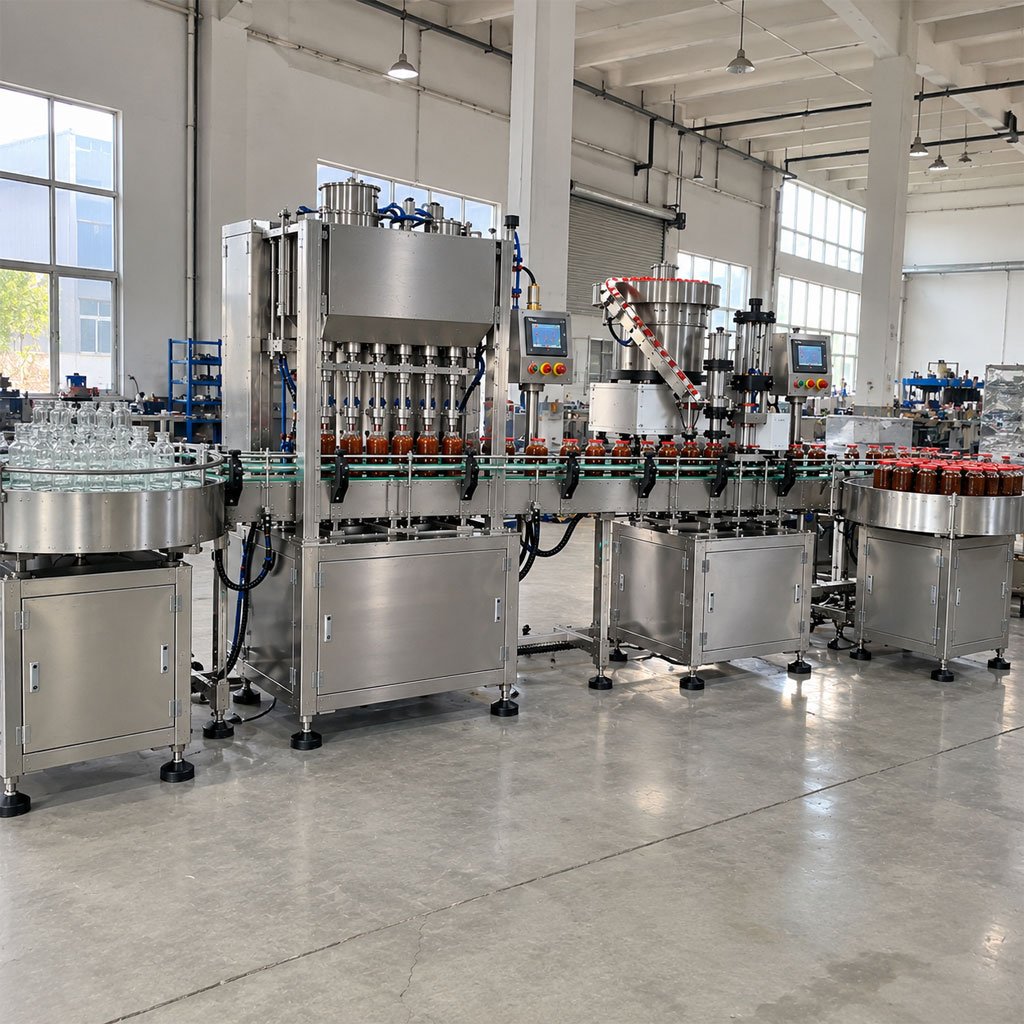

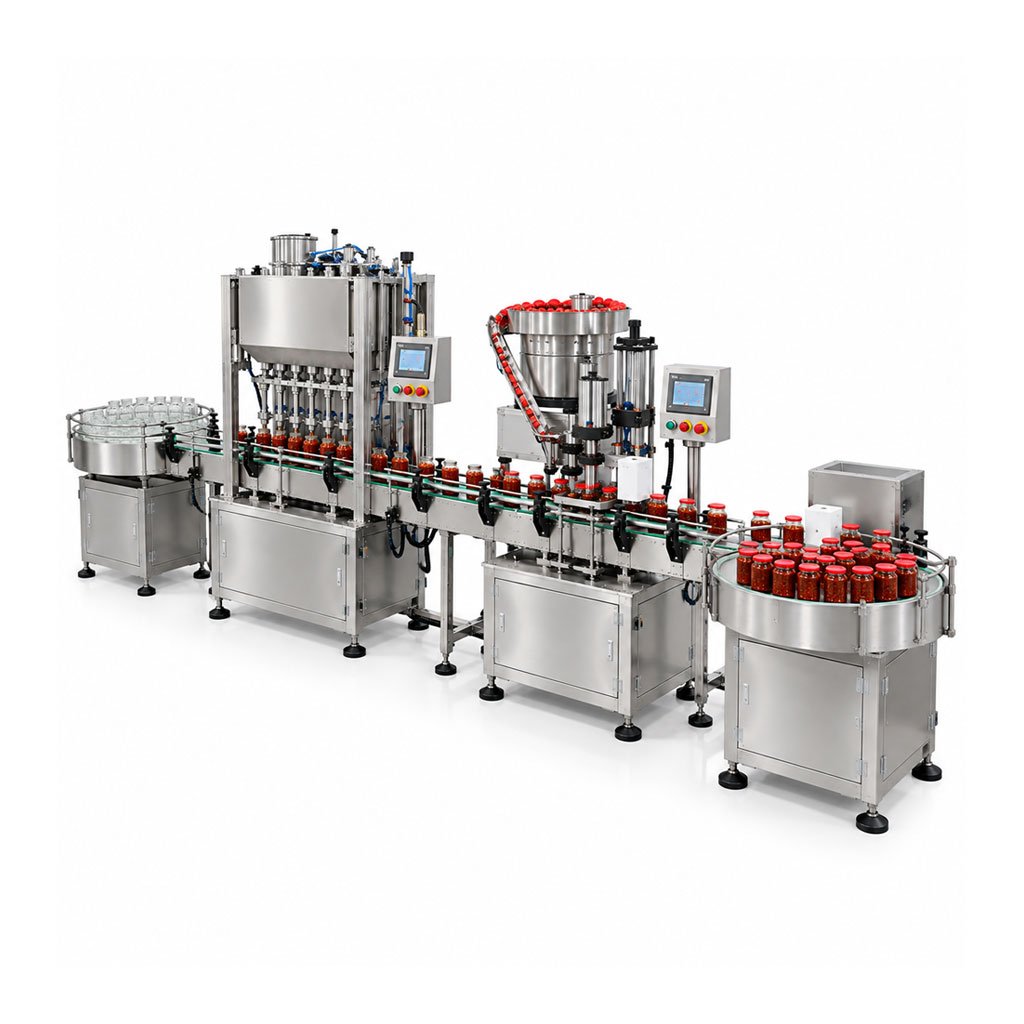

The Complete Sauce Bottling Production Line (integrating Bottle Unscrambling/Washing $\rightarrow$ Servo Piston Precision Sauce Filling $\rightarrow$ Automatic Cap Feeding / Vacuum Capping & Seaming $\rightarrow$ Finished Product Conveying & Bottle Collecting) is an industrial-grade, high-efficiency automation system built specifically to solve sauce and viscous paste packaging pain points, such as slow manual filling, dripping on bottle rims, clogging caused by solid particles (such as meat chunks or chili flakes), mold caused by loose seals, stripped cap threads, and dirty container bodies.

LANTU Machinery introduces tailored, full-line automated sauce bottling solutions. Utilizing heavy-duty stainless steel chain conveyors, servo-driven anti-drip piston fillers (supporting solid-liquid mixtures), servo steam-jet/vacuum seamers, and automated buffer turntables, the line operates across four core stations (1. Automatic Bottle Unscrambling / Air-Water Cleaning $\rightarrow$ 2. Servo Anti-Drip Paste Filling $\rightarrow$ 3. Automatic Cap Feeding & Vacuum Capping/Seaming $\rightarrow$ 4. Bottle Washing/Drying & Bottle Collecting). It functions like an expert dedicated to sauce packaging. Whether processing glass bottles, PET containers, tin cans, or custom-shaped jars, it realizes end-to-end integration: automatic unscrambling, dust cleaning, drip-free precise dosing, high-vacuum capping, and smooth bottle collection with zero filling errors, zero leakage, clean container surfaces, and no manual contact required.

As a direct source packaging machinery manufacturer, LANTU Machinery makes this complex automatic unscrambling, servo piston dosing, anti-drip suction, optical positioning, steam-jet vacuum capping, and smart collecting process as intuitive as using a smartphone. Operators simply adjust parameters on the central PLC touchscreen and load empty bottles and sauce materials into the unscrambler and heated agitation hopper. The production line automatically manages bottle fetching, quantitative filling, capping, and seaming to deliver market-ready products. Accommodating a wide range of container diameters and heights (e.g., bottle diameter 30mm to 150mm, height 50mm to 260mm), this line drastically shortens packaging cycles while saving labor, time, and operating costs.

Choosing a reputable source manufacturer is crucial for your return on investment. LANTU Machinery’s mature line-control and anti-drip sauce filling/capping technologies deliver high reliability and material efficiency to keep your sauce bottling line running without interruption.

Core Components & Three Key Systems (LANTU Precision Parts)

Our Complete Sauce Bottling Line is built with industry-leading components to ensure high quality, zero defects, and extended machine lifespan.

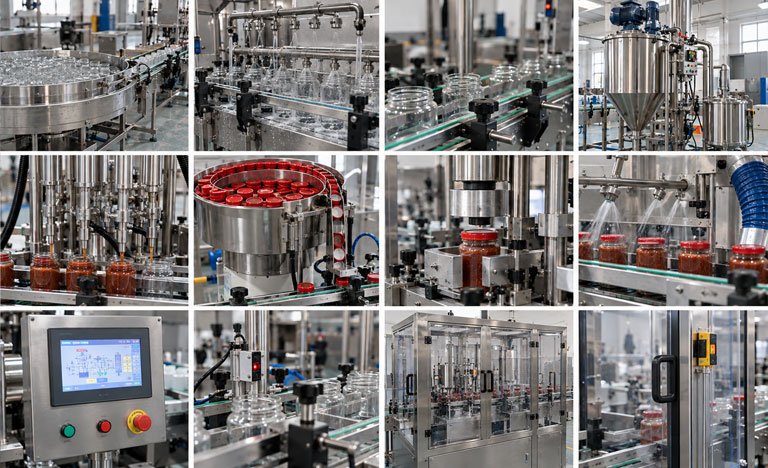

1.Intelligent Bottle Unscrambling, Washing & Heavy-Duty Conveying System

Automatic Rotary / Elevator Bottle Unscrambler: Features a stepless speed-regulated mechanism that aligns disordered empty bottles into a smooth single file. Smart sensors detect fallen or missing bottles without damaging container bodies.

High-Pressure Rinsing / Air Jet Cleaning Unit: Equipped with high-pressure sterile water rinsing or ionized air jetting that performs 360° internal cleaning before filling to remove dust and foreign particles.

Heavy-Duty Stainless Steel Chain & Servo Conveyor: The entire line uses 304/316L stainless steel chain plate conveyors with guardrails for smooth transit. High-precision servo stopper mechanisms ensure zero positioning deviation during filling and capping.

2.Servo Piston Filling, Vacuum Capping & Bottle Washing System

Servo Piston Anti-Drip Filling (Supports Solid-Liquid Mixtures): Features servo motors driving 316L precision piston pumps with vertical/horizontal agitation and hot-water jacketed insulated hoppers. Dosing nozzles feature anti-drip and anti-stringing suction mechanisms to smoothly process large particles (e.g., meat chunks, peanuts) without clogging.

Automatic Cap Feeding & Servo Steam/Vacuum Capper: Automatic vibratory bowls/elevators deliver caps with precision while servo capping heads control tightening torque. Optional steam-jet vacuum systems create high vacuum levels to significantly extend sauce shelf life.

External Bottle Washer & Air Dryer (Optional): Washes bottle exterior surfaces with warm water jets after capping and dries them with high-pressure air blowers to ensure clean, residue-free containers.

3.Central Control & Safety Protection System

Siemens / Mitsubishi PLC Bus Central Controller: Industrial-grade multi-core CPU provides centralized line control, full-line status monitoring, anti-interference capabilities, and multi-language support.

No Bottle No Filling / No Bottle No Cap Feeding Protection: Real-time sensors monitor containers and caps. Operations automatically pause if bottles or caps are missing, preventing material waste and equipment contamination.

Fully Enclosed Safety Guarding: Key line stations feature transparent safety doors that instantly stop operation when opened, meeting GMP and food hygiene standards while protecting operators.

Technical Specifications

Note: Actual line speed depends on sauce viscosity, solid particle ratio and size, bottle neck diameter, and vacuum requirements. Custom engineering available upon request.

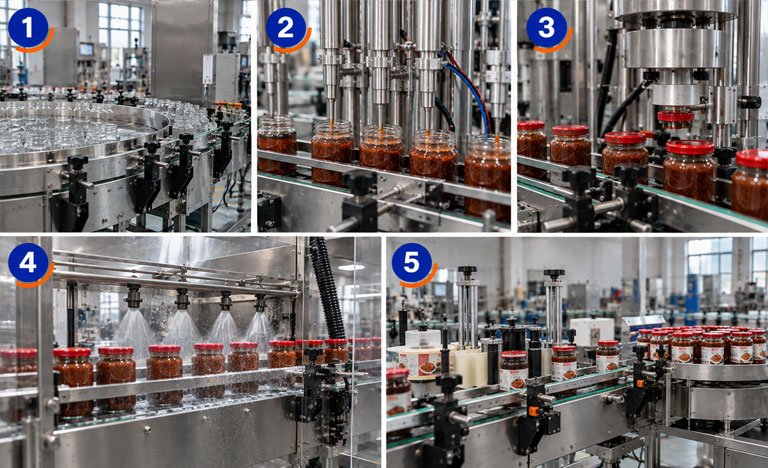

Complete Sauce Bottling Line Workflow

Station 1 (Automatic Bottle Unscrambling / Cleaning): Bulk empty bottles are loaded into the unscrambler, aligned into a single file, and fed into the rinsing/air-cleaning station for internal sanitation.

Station 2 (Servo Sauce Filling): Bottles enter the filling zone, stoppers align bottle mouths, and servo piston pumps lower nozzles with anti-drip suction to deliver quantitative charges.

Station 3 (Automatic Cap Feeding & Vacuum Capping): Cap elevators deliver lids to bottle mouths, steam jets displace air from container necks, and servo capping heads apply constant torque to tighten lids.

Station 4 (Bottle Washing & Drying): Capped sauce bottles pass through an online spray zone to remove external residues, followed by high-pressure air knives that remove water droplets.

Station 5 (Precision Labeling & Bottle Collecting): Containers enter the labeling area for wrap-around or double-sided labeling and coding. Finished bottles exit onto a buffering collection turntable for manual casing or downstream integration.

Applicable Materials & Container Formats

Engineered for maximum operational return, the LANTU Machinery Complete Sauce Bottling Line offers broad material and container versatility across multiple sectors:

1.Applicable Materials (Sauces, Pastes & Solid-Liquid Mixtures)

Condiments & Table Sauces: Chili sauce, beef sauce, spicy sauce, garlic sauce, peanut butter, sesame paste, fruit jam, salad dressing, etc.

Catering Bases & Compound Sauces: Hot pot base, ketchup, broad bean paste, black pepper sauce, curry paste, abalone sauce, etc.

Personal Care & Industrial Pastes: Cleansing balms, face creams, body scrubs, industrial greases, etc.

2.Applicable Container Formats

Glass Sauce Jars/Bottles: Classic square jars and round bottles (such as lug-cap glass jars).

Plastic Bottles / Jars (PET / PP): Squeezable or wide-mouth plastic sauce containers.

Tinplate Cans: Large-capacity commercial catering sauce cans.

5 Reasons to Choose LANTU Machinery Sauce Bottling Lines

When investing in automated packaging equipment, high precision, low maintenance, and long-term stability are core metrics. LANTU Machinery builds every machine for plug-and-play operation and extended service life.

Full Anti-Drip & Solid-Liquid Anti-Clogging Protection: Purpose-built sauce piston pumps paired with pneumatic cut-off nozzles deliver smooth product flow without rim dripping.

Steam-Jet High-Vacuum Capping for Extended Shelf Life: Unique steam vacuum technology displaces headspace oxygen to extend sauce shelf life without adding preservatives.

Pre-Factory Live-Container Testing: Every line undergoes continuous high-, medium-, and low-speed testing using real containers and sauce products across varied viscosities to eliminate filling and capping errors prior to shipment.

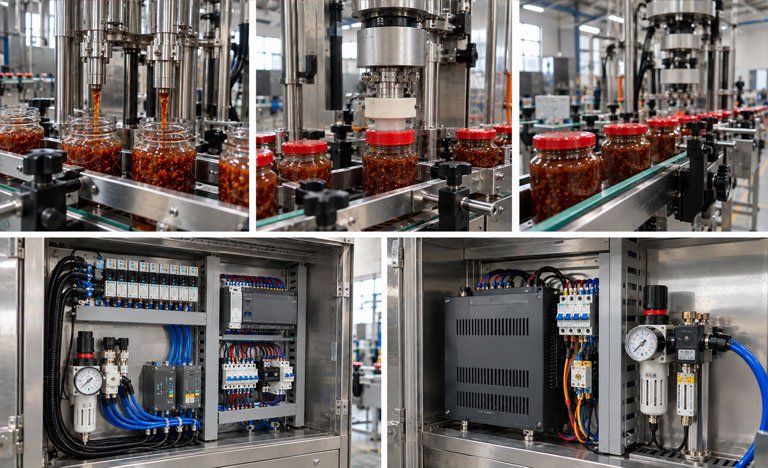

Corrosion-Resistant, Low-Vibration Routing: All wiring and pneumatic lines are modularized, vibration-proofed, and sealed against corrosion to withstand acidic and salty sauce environments.

Voltage & Air Pressure Dual Protection: Built-in wide-range voltage regulation and pneumatic overload protection handle factory power and air pressure fluctuations to ensure consistent capping and seaming quality.

Key Factors to Consider When Purchasing a Sauce Bottling Line

To select the ideal production line configuration, evaluate the following key purchasing metrics:

Target Output (bottles/min):

15–30 bottles/min: Dual-head servo piston filling + standard capping line.

30–60 bottles/min: 4-to-8-head servo piston filling + high-speed steam vacuum capping line.

Sauce Physical Properties: Presence of solid particles (and particle size), viscosity (need for thermal jackets and agitators).

Cap Types: Twist-off lug caps, plastic screw caps, or press-on caps (determines cap feeder and vacuum capping head structures).

Downstream Optional Modules: Requirements for online spray washing/drying, sleeve/wrap labeling, bottle coding, or checkweighing/rejection.

Frequently Asked Questions (FAQ)

Q1: If the sauce contains large meat chunks or chili flakes, will it clog nozzles or cause inaccurate dosing?

A: No. We utilize rotary valve piston pumps and oversized three-way valves designed specifically for particle-laden sauces. Driven by servo motors, large chunks (such as 10mm–15mm meat pieces) pass through smoothly without clogging or losing accuracy.

Q2: High-viscosity sauces cool and solidify easily. Does the equipment include heating and insulation features?

A: Yes. Our hoppers and filling manifolds can be customized with dual-layer hot water circulation or electric heating systems, paired with vertical or horizontal wall-scraping agitators to keep sauces flowing smoothly without solidifying.

Q3: How does the capping process prevent sauce mold and spoilage?

A: We integrate a steam-jet vacuum system at the capping station. High-pressure steam displaces headspace air immediately before capping. As the steam cools and condenses inside the sealed jar, a high vacuum is formed, inhibiting bacterial growth and extending shelf life.

Contact the Direct Source Manufacturer Today for a Custom Sauce Bottling Line Solution!

LANTU Machinery — Dedicated to Packaging Equipment Manufacturing with Factory-Direct Quality Assurance.
