Horizontal Bag-Feeding Packaging Systems

Say Goodbye to Roll Film Limitations and Manual Bagging: Experience Rapid Horizontal Pouch-Feeding Automation

The Horizontal Pouch-Feeding Packaging System is an industrial-grade, high-efficiency automation assistant designed specifically to eliminate factory pain points such as difficult feeding for large-capacity bags, slow positioning for shaped/spout pouches, material jamming during high-viscosity or bulky filling, large footprints, and tedious pouch size changeovers.

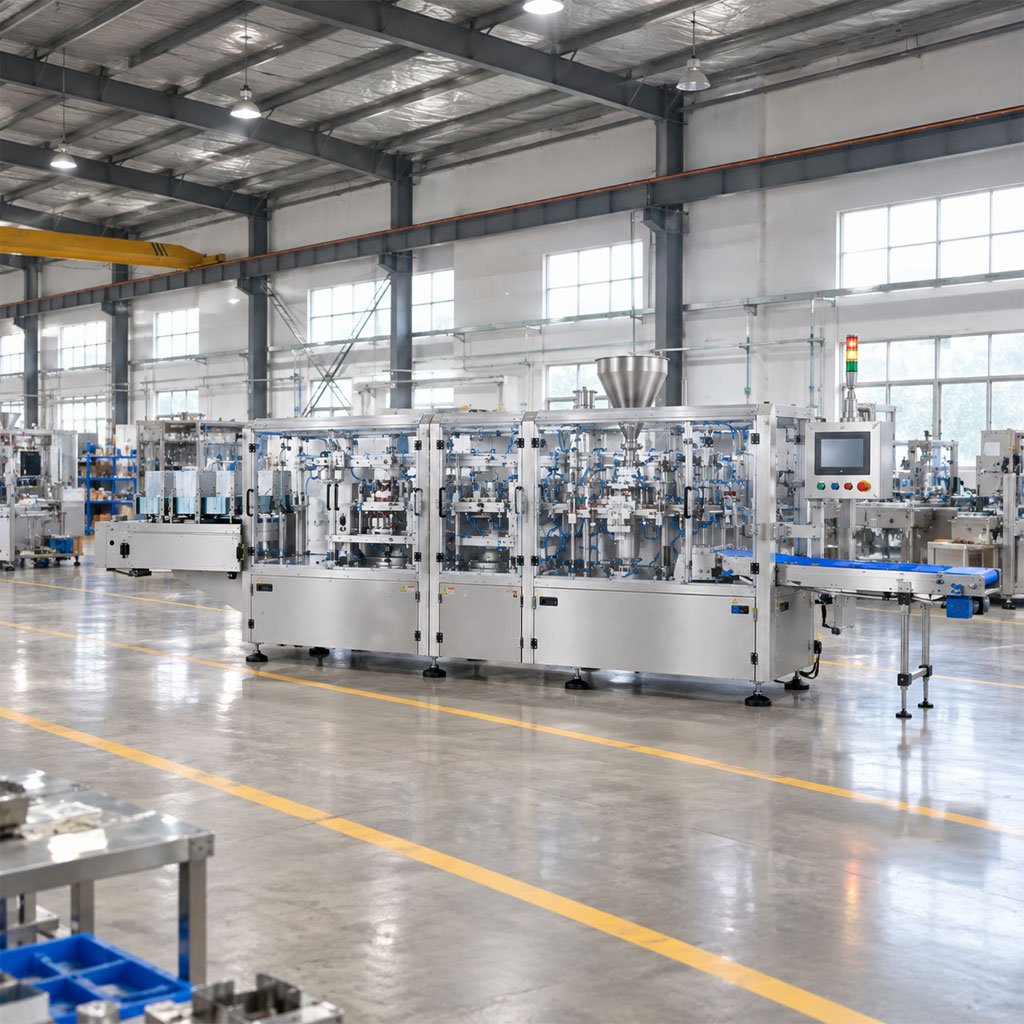

LANTU Machinery introduces the all-new Horizontal Pouch-Feeding Packaging System. Utilizing a horizontal inline/loop transmission structure, servo-driven horizontal pouch feeding, multi-stage precision vacuum bag opening, and an intelligent anti-jamming filling mechanism combined with modular multi-station continuous operation, it functions as a precise and fast packaging expert for pre-made pouches. Whether handling stand-up pouches, zipper bags, flat pouches, spout pouches, 4-side seal bags, or heavy-duty large bags, it achieves fully integrated, automated operation—from automatic horizontal pouch pick-up, stable conveyance, precise date coding, and pneumatic opening to damage-free filling and flawless sealing—ensuring smooth, wrinkle-free seals, premium pouch aesthetics, and zero bag waste.

As a direct source manufacturer of packaging machinery, LANTU Machinery makes this complex automatic horizontal pouch-feeding process—comprising horizontal pouch storage, horizontal gripping, code positioning, air inflation opening, servo feeding, base settling, and high-pressure sealing—as easy to operate as a smartphone. Operators simply adjust the pouch width with one touch on the PLC touchscreen and place stacks of pre-made pouches into the horizontal pouch magazine. The machine automatically handles pouch picking, opening, and synchronized feeding via multi-head weighers, auger fillers, or liquid pumps, delivering factory-grade, premium finished pouches. This system significantly shortens the packaging process, saving labor, time, and money for your factory.

Choosing a reputable direct manufacturer is crucial to your return on equipment investment. LANTU Machinery’s proven horizontal conveyance and vacuum opening/sealing technology, combined with high reliability and industry-leading pouch utilization rates, ensures smooth, trouble-free operation for your pre-made pouch packaging line.

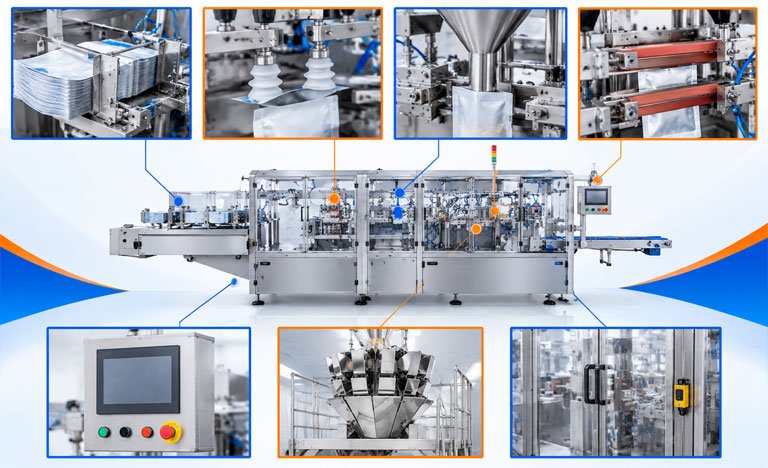

Core Components and Three Major System Safeguards (LANTU Precision Components)

Our Horizontal Pouch-Feeding Packaging System is equipped with top-tier industry core components across the entire line, guaranteeing high quality, flawlessness, and an ultra-long service life from the source.

1.Horizontal Pouch Feeding, Picking, and Opening System

Horizontal Large-Capacity Flat-Shift Feeding Mechanism: Uses a horizontal storage magazine that supports loading large quantities of pre-made pouches at once, making replenishment more convenient. Paired with imported SMC vacuum generators and wear-resistant silicone suction cups, it ensures stable horizontal shift gripping without double-bag intake.

Dual-Axis Pneumatic Opening and Air Inflation Expansion: Features synchronized upper and lower vacuum suction cups to pull open the bag mouth, combined with high-pressure air injection nozzles and zipper-opening devices to guarantee 100% successful opening for zipped or rigid pre-made stand-up pouches.

One-Touch Electric/Automatic Gripper Width Adjustment: When changing pouch specifications, simply input the width on the touchscreen. The system automatically drives all grippers across the line to adjust into position within 3 minutes.

2.Filling, Settling, and Dual Heat-Sealing System

No-Pouch / Unopened-Pouch No-Fill Protection: An intelligent sensing system detects the bag opening status in real time. If a pouch fails to open, filling and sealing are bypassed, allowing the pouch to be reused and completely preventing material waste and equipment contamination.

Base Tapping/Settling and Pouch-Stretching Mechanism: The filling station is equipped with pneumatic tapping and base-vibration devices to quickly settle bulky or chunk material to the bottom. Alignment-stretching grippers are used before sealing to ensure smooth, wrinkle-free seals.

Dual Heat Sealing and Cold-Press Shaping: Employs first-stage high-pressure heat sealing + second-stage smooth heat sealing/embossing + third-stage cold-air flattening/shaping. The seal is aesthetically pleasing, firm, and highly resistant to bursting and leakage.

3.Intelligent Control and Safety Protection System

Siemens/Mitsubishi PLC Central Control Core: Industrial-grade multi-core CPU control delivers stable operation, strong anti-interference capabilities, and supports switching between 10 languages.

Seamless Multi-Head Feeder Interlocking Interface: Features standardized interlocking communication protocols to seamlessly interface with 10/14-head multi-head weighers, auger fillers, liquid/paste dosing pumps, and tablet/counting discs.

Fully Enclosed Safety Protection Door: The thickened 304 stainless steel body is fitted with transparent safety doors that pause operation when opened. This complies with GMP and food/pharmaceutical hygiene standards while maximizing operator safety.

Technical Specifications

To meet the diverse demands of factories regarding pre-made pouch dimensions, large-capacity heavy bags, and spout pouches, Lanto Machinery offers two core models of Automatic Horizontal Premade Pouch Packaging Systems:

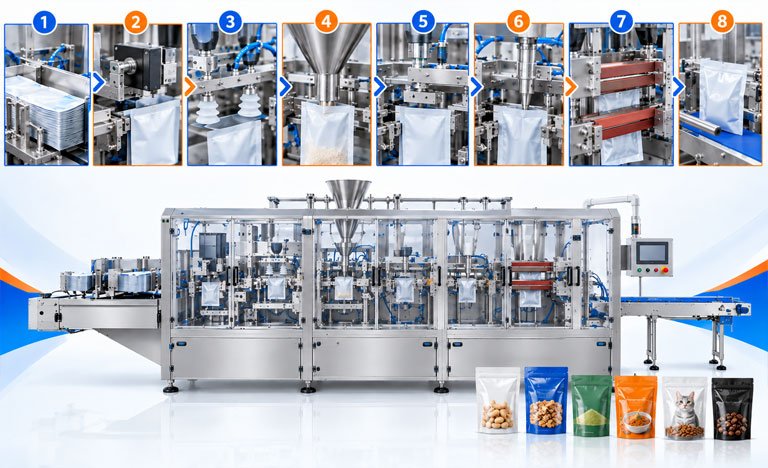

Complete Horizontal Pouch-Feeding Workflow Breakdown

Station 1 (Horizontal Feeding/Picking): The horizontal storage magazine smoothly advances the pouches; vacuum suction cups horizontally grip and feed the pouch into the conveyor grippers.

Station 2 (Date Printing/Coding): Optional ribbon coders, inkjet printers, or Thermal Transfer Overprinters (TTO) precisely print production dates and batch numbers on designated areas of the pouch.

Station 3 (Opening/Zipper Opening): Upper and lower vacuum suction cups pull open the bag mouth; air nozzles insert to blow open the pouch bottom. If zippers are present, zipper teeth are unzipped simultaneously.

Station 4 (Filling/Dosing): The feeding equipment (multi-head weighers/auger/liquid pump) receives a signal and dispenses material precisely; the filling nozzle features anti-drip and anti-jamming devices.

Station 5 (Settling/Pouch Stretching): Bottom settling devices tap the pouch base to settle material, leaving ample clearance for sealing; secondary filling can also be performed here.

Station 6 (Nitrogen Flushing/Reserved): Optional nitrogen flushing devices evacuate air from the pouch for freshness preservation, or serve as a third filling/liquid injection station.

Station 7 (Heat Sealing): PID intelligent temperature-controlled heat-sealing jaws close under high pressure to complete aesthetically pleasing bag mouth sealing.

Station 8 (Cooling Shaping & Output): Cooling blocks quickly flatten the seal, and finished pouches are smoothly output by the conveyor belt.

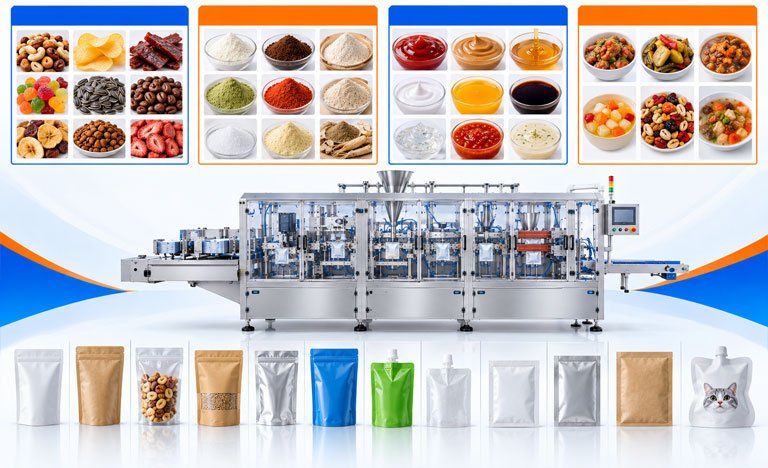

Applicable Materials and Pouch Type Guide

To maximize the profitability of your production line, the LANTU Machinery Horizontal Pouch-Feeding Packaging System offers excellent compatibility and customizable designs for various industry materials and pouch formats:

1.Applicable Materials (Granules, Powders, Liquids, and Composite Materials)

Snacks/Nuts/Granules: Nuts, puffed food, jerky, candy, roasted seeds, freeze-dried food, pet food, etc.

Powders/Condiments: Milk powder, coffee powder, seasoning powder, flour, washing powder, TCM powder, etc.

Liquids/Pastes: Sauces, detergents, butter, juice, hotpot base, personal care lotions, etc.

Mixed Composite Materials: Liquid + solid combinations (e.g., pickles, sauerkraut, canned meal kits) using multi-feeder head combinations.

2.Applicable Pre-Made Pouch Types (Pre-Printed Finished Pouches)

Stand-Up Pouches / Stand-Up Zipper Bags (Doypack): The most popular premium retail bag format.

4-Side Seal Bags / Flat Pouches: Commonly used for pharmaceuticals, facial masks, and fine chemicals.

Spout Pouches / Shaped Bags: Liquid spout pouches, large-capacity snack bags, or high-end gift pouches.

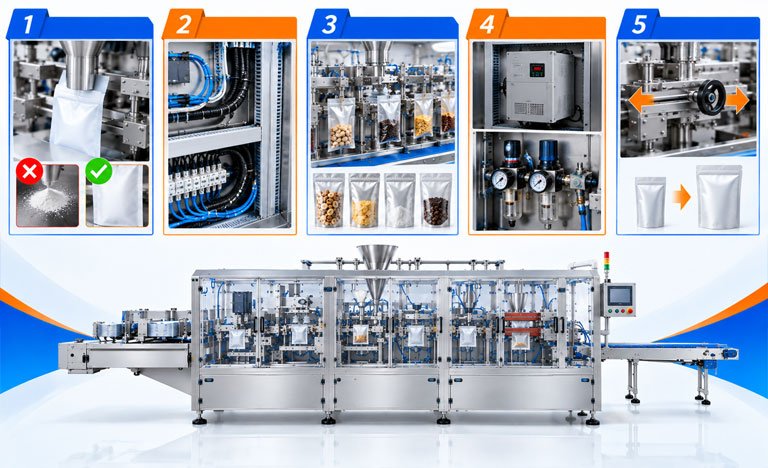

5 Reasons to Choose LANTU Machinery’s Horizontal Pouch-Feeding Packaging System

High precision, low maintenance, and long-term stability are core metrics when investing in automated packaging equipment. LANTU Machinery is committed to making every machine shipped “plug-and-play and long-lasting.”

Zero Bag Waste & Zero Contamination Protection: If a bag is missing or fails to open, material will not dispense and sealing will not engage. The pre-made bag can be reused, leaving zero residue in the hopper.

Ultra-Clean, Anti-Vibration Air & Circuit Routing: All electrical control circuits and pneumatic lines undergo strict modular anti-vibration and dust-proof sealing treatments to minimize operational failure rates.

Full-Process Live Bag & Material Testing Before Shipment: Before leaving the factory, equipment undergoes extensive continuous testing under high, medium, and low speeds using pre-made bags of different materials (aluminum foil/PE/composite film) with actual materials to completely eliminate gripping and sealing errors.

Dual Voltage and Air Pressure Stabilization Protection: Built-in wide-range voltage stabilization modules and air pressure overload protection devices handle factory power fluctuations or unstable air pressure smoothly, ensuring consistent pouch pulling and sealing quality.

Modular Fast Changeover & One-Touch Width Adjustment: Fully automatic one-touch gripper width adjustment allows pouch specification switches in just a few minutes, drastically reducing downtime.

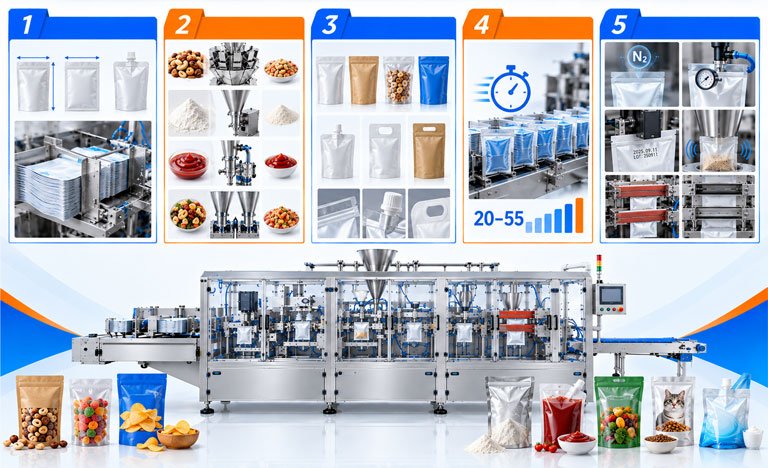

What Factors Should You Consider When Purchasing a Horizontal Pouch-Feeding Packaging System?

To help you select the equipment that best matches your production line, consider these key purchasing indicators:

Pre-Made Pouch Dimensions & Horizontal Magazine Specifications: Match horizontal shift grippers and storage magazines based on product pouch width (e.g., 100mm–300mm) and length.

Interfacing Feeder Types:

Granules/Chunks: Connect to Computerized Multi-Head Weighers.

Fine Powders: Connect to Servo Auger Fillers.

Liquids/Pastes: Connect to Pneumatic/Servo Liquid and Paste Dosing Pumps.

Mixed Materials: Utilize Dual Filling Stations.

Pouch Material and Zipper/Spout Types: Determine whether zippers are included (requires a zipper-opening device) or spouts are present (requires a spout pouch positioning device).

Target Capacity (Bags/Min): Select the optimal horizontal transmission cycle and feeder response time based on single-machine packaging speed requirements (e.g., 20–55 bags/min).

Special Functional Requirements: Determine whether nitrogen flushing, vacuum air extraction, date coding (ribbon/inkjet/laser/TTO), heavy-duty base settling, or secondary sealing is required.

Frequently Asked Questions (FAQ)

Q1: What are the advantages of a Horizontal Pouch-Feeding System compared to a Rotary Pouch-Feeding Machine?

A: The horizontal system uses a flat-shift structure. Its horizontal pouch magazine can hold significantly more pre-made pouches at once, allowing replenishment without frequent stops. It performs exceptionally well regarding conveyance stability for large-capacity, heavy-duty, or spout pouches, while providing more spacious room for maintenance and inspection.

Q2: If the pre-made bag fails to open, will the material spill out and contaminate the machine?

A: Absolutely not. We equip the machine with no-bag / unopened-bag detection sensors. As long as a pouch is unopened, the system automatically skips dispensing and sealing. Material remains safely in the hopper, and the pouch advances to the next cycle or triggers a stop prompt.

Q3: Is it complicated to adjust the grippers when switching to different pouch sizes?

A: It is extremely simple. The entire machine features electric one-touch width adjustment. Input the target pouch width on the PLC touchscreen, and all mechanical grippers across the line will automatically adjust in sync within a few minutes.

Contact the direct source manufacturer today to get your custom horizontal pouch-feeding packaging solution! LANTU Machinery — Dedicated to Packaging Equipment Manufacturing with Factory-Direct Quality Assurance.
